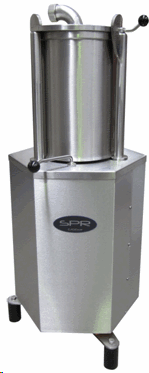

Intelligent design, and decades of experience are combined with a quality finish to produce the SPR Global Hydraulic Sausage Filler. The Hydraulic (oil) operated Filler is available in two capacities - 20kg and 27kg.
The Sausage Fillers are extremely versatile and are in use in many different applications, from all meat types, cheese, fruit, vegetables, honey, butter and cosmetics manufacturing.
SPR Global machinery is very reliable and durable. All consumable parts and spares for the machines are reasonably priced and readily available to minimise the cost of machine maintenance and down time.
* Stainless Steel Barrel , Exterior Body, Plunger, Locking Arms, Lid & Nozzles* Built in Motor Overload Protection
* Special purpose designed piston & Cylinder for superior smooth performance & much less strain on the machine.
* Knee operated Filling Lever allowing hands to be free for sausage handling
* Release of Knee Lever automatically stops the piston and stops the filling process
* Simple & Quick operation
* Easy & quick to dismantle for thorough cleaning
* Removable Barrel
* Electrical parts are enclosed in an IP 65 standard watertight box
* Reduced labour costs —in filling & cleaning
* No product over-run when filling casings
* 0.75 kW motor
* Supplied with 3 standard nozzles & hydraulic oil
* Quick and easy to clean —no tool required
* 3.3 meter heavy duty power lead
* Rust proof poly feet to protect the floor from rust mark & scratches
| TECHNICAL SPECIFICATIONS | ||
| 27 Kg Filler | 20 Kg Filler | |
| Height | 1315mm |
1190mm |
| Diameter | 450mm |
450mm |
| Nozzle height | 1295mm |
1170mm |
| Weight | 130kg (packed) |
120kg (packed) |
| Capacity | 27kg |
20kg |
| Motor | 0.75kW (1 hp) 4 pole | 0.75kW (1 hp) 4 pole |
| Amps | 1.8A/ph | 1.8A/ph |
| Power Supply requirements | 415V, 3 phase, 50Hz, 10 amps | 415V, 3 phase, 50Hz, 10 amps |
